Vickers Hardness Tester
300015.00 INR/Unit
Product Details:
- Material Steel
- Weight 40-70 Kilograms (kg)
- Color White
- Product Type Vickers Hardness Tester
- Temperature 5-40 Celsius (oC)
- Dimension(L*W*H) 405x290x480 Millimeter (mm)
- Usage Industrial
- Supply Ability : 10 Piece Per Month
- Click to view more
X
Price And Quantity
- 1 Piece
- 300015.00 INR/Unit
Product Specifications
- Industrial
- 405x290x480 Millimeter (mm)
- White
- 40-70 Kilograms (kg)
- Steel
- 5-40 Celsius (oC)
- Vickers Hardness Tester
Trade Information
- Cash Advance (CA), Cash in Advance (CID)
- 10 Piece Per Month
- 15-30 Days
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description

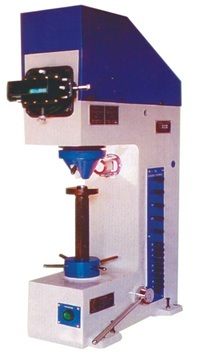

Vickers Hardness Tester Model : BIVM-50
The indentation is achieved using dead weight system and the indenter. The force applied by the weights on the indenter penetrates the component under test. The load is removed after defined dwell time which allows the clear penetration. As the load is removed, the optical system displays the indentation mark on the component. This is measured through the precision optical readout system having micrometer. The test cycle is fully automatic.
Technical Specifications:
- Load: 5, 10, 20, 30, 50 (Load for Vickers)
- Optical Magnification: 70x
- Maximum Test Height: 200 mm
- Depth of Throat: 135mm
- Weight Approx.: 70 kgs
- Dimension L x W x H (approx): 585 x 290 x 860mm
- Connected Load: 0.1 kva, 1 Phase ac, 220v, 50hz
- Motor: 0.33 hp
- Power: 220 / 1 V/ph
